Platform | Data Acquisition |
|
Compact PCI | Compact PCI 8/16 Channel Smart A/D : Model 718 / 719 Measures thermocouples, RTDs, strain gages, voltage, 4-20 mA, thermistors, and resistors | 8 or 16 differential input channels | Integral sensor excitation | Sensor type configurable per channel | Auto-calibration eliminates trimpots Software: Windows |  |

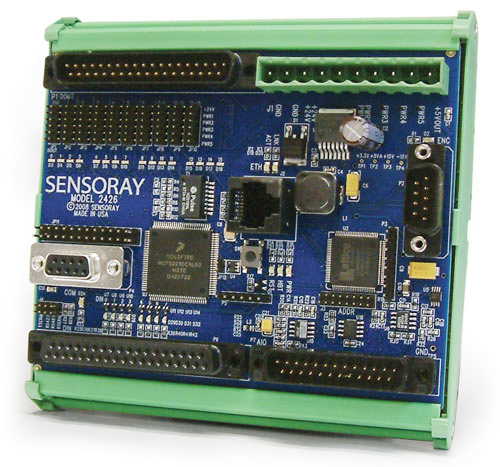

Ethernet | Ethernet Multi-Function Interface : Model 2426 Controls/monitors real world signals over Ethernet | 24 digital I/O, 6 analog in, analog out, serial comm, incremental encoder in | PWM and debounce on digital I/Os | Integral support for safety interlocks | Embedded HTTP and Telnet servers | Open source API | Low cost, low power & compact size Software: Linux, Windows |  |
Ethernet Smart A/D : Model 2518/2519 8 or 16 differential thermocouples, RTDs, strain gages, thermistors, resistance, 4-20 ma, or voltage inputs | Includes screw terminals for field wiring | 10-Base-T Ethernet server with embedded TCP/IP stack | Includes interface DLL | Single supply operation | Each channel is software programmable for sensor type, gain, low-pass filtering, and scan rate Software: Windows |  | |
Industrial I/O via Ethernet : Model 2600 Series Low cost analog, digital I/O via Ethernet | Relay and digital outputs can be preempted by interlock and emergency stop signals | Comprehensive status LEDs | I/O modules connect directly to field wiring | No additional break-out boards needed | I/O modules networked via low-cost cat-5 patch cables Software: Linux, Windows |  | |
Analog I/O Module : Model 2608 16 differential analog inputs | measures voltage, thermocouple, and 4-20 mA | Up to 8 analog outputs with remote sensing | Fully electronic calibration | Onboard DC/DC converter | Selectable input gain | Connects to Ethernet via 2601 I/O system hub Software: Linux, Windows |  | |
Strain Gauge via Ethernet : Model 2612 Simultaneous measurement of four strain gages or RTDs | 6- or 4-wire connections for high precision | 200 nV measurement resolution at 6 samples/s | Auto-calibration cycle Software: Linux, Windows |  | |
ISA | 32-Channel Smart A/D : Model 417 Supports thermocouples, voltage in and 4-20 mA | 32 differential input channels | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots Software: Windows |  |
8/16 Channel Smart A/D : Model 418/419 Supports thermocouples, RTD's, strain gages, voltage in, 4-20 mA, thermistors, and resistors | 8 or 16 differential input channels plus sensor excitation | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots Software: Windows |  | |
ISA Multifunction I/O Board : Model 421 3 quadrature encoder channels with 16-bit counters | Four 12-bit D/A outputs | Eight 12-bit differential A/D inputs | Watchdog timer | 48 bidirectional digital signals for solid state relay boards |  | |

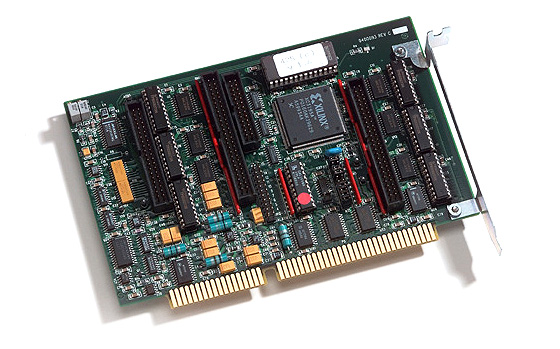

Multifunction I/O Analog & Digital Interface : Model 425 Three quadrature encoder channels with 24-bit counters | Four 12-bit D/A outputs | Eight 12-bit differential A/D inputs | Watchdog timer | 48 bidirectional digital signals | Interrupts from counters and digital I/Os |  | |

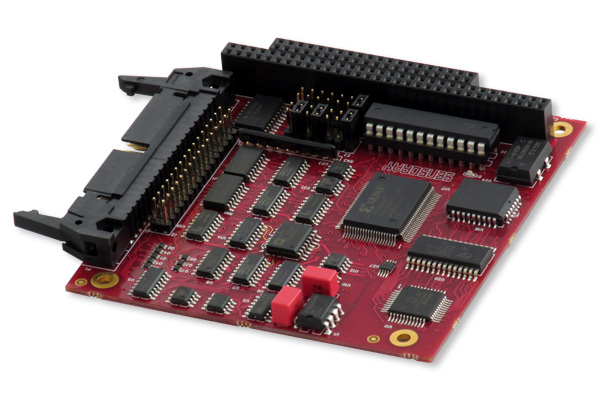

PC/104 | PC/104 8-Channel Smart Sensor Interface : Model 518 Measures thermocouples, RTDs, strain gages, thermistors, 4-20 mA, voltage and resistance | 8 high-accuracy differential input channels | Integral sensor excitation | Exclusive pulsed excitation minimizes sensor self-heating | Configurable sensor type per channel | Fully electronic calibration | Low power Software: Windows |  |
Four 24-bit quadrature encoder inputs | Four 16-bit analog outputs | Optional 16-bit A/D with 8 analog inputs | Single supply (5 V) input power | Programmable interrupt timer | Versatile watchdog timer Software: Windows |  | |
PCI | PCI 8/16 Channel Smart A/D : Model 618 / 619 Measures thermocouples, RTDs, strain gages, voltage, 4-20 mA, thermistors, and resistors | 8 or 16 differential input channels | Integral sensor excitation | Configurable sensor type per channel | Auto-calibration eliminates trimpots Software: Windows |  |
PCI Multifunction I/O : Model 626 6 versatile 24-bit counters for encoders/timers with interrupt generation | Battery backup of counters | Four 14-bit D/A outputs | Sixteen 14-bit differential A/D inputs | Watchdog timer may be used to reset PCI bus | 48 bi-directional digital signals, 20 with edge detection and interrupts Software: Linux, QNX, Windows |  | |

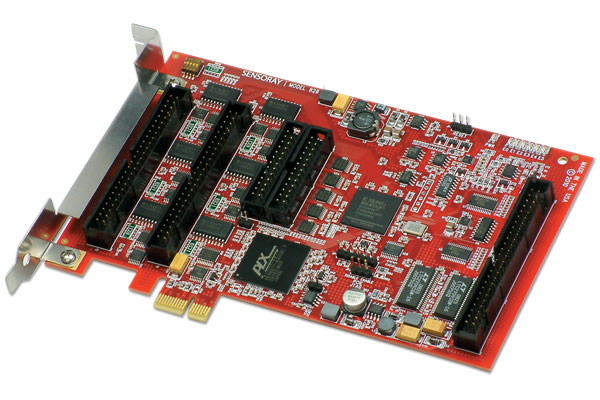

PCI Express | PCI Express Analog and Digital I/O : Model 826 Six advanced 32-bit counters | Directly supports incremental encoders, pwm/pulse generation, frequency/pulse/period measurement | 16 analog inputs, 18-bit resolution, 100 ksps | 8 analog outputs, 16-bit resolution | 48 bi-directional digital I/Os with edge capture | Compatible with standard solid state relay racks Software: Linux, Windows |  |
STD | 8-Channel Digital to Analog : Model 7405 Eight 12-bit analog output channels | Channels independently configured for +10V / 4-20mA | Outputs automatically reset to 0 volts or 4 mA | 0-to-5V / 0-10V output options Software: Windows |  |
8-/16-Channel Smart A/D : Model 7418/7419 Supports thermocouples, RTD's, strain gages, voltage in, 4-20 mA, thermistors, and resistors | Up to 16 differential input channels plus sensor excitation | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots Software: Windows |  | |
Multifunction I/O : Model 7421 3 quadrature encoder channels with 16-bit counters | Four 12-bit D/A outputs | Eight 12-bit differential A/D inputs | Watchdog timer | 24 bi-directional digital signals Software: Windows |  | |
Low Power Smart A/D : Model 7429 Supports thermocouples, RTD's, strain gages, voltage in, 4-20 mA, thermistors, and resistors | 8 differential input channels with sensor excitation | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots | Low power consumption Software: Windows |  | |
8 Channel Smart A/D : Model 7430 Supports thermocouples, RTD's, strain gages, voltage in, 4-20 mA, thermistors, and resistors | 8 differential input channels with sensor excitation | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots Software: Windows |  | |
VME | 8 Channel Smart A/D : Model 118 Supports thermocouples, RTD's, strain gages, voltage in, 4-20 mA, thermistors, and resistors | Up to 16 differential input channels plus sensor excitation | Each channel is software programmable for sensor type, gain, low-pass filtering, scan rate | Auto-calibration eliminates trimpots Software: Windows |  |
| Can't find what you're looking for? Inquire about a custom solution or request information about a specific product. |
